edit, in other news, my €25 Volvo heater core just turned up... fits like a glove, and is double the size of the old core. not a mod for everyone, as the pipe orientation suits my bodgy RHD-LHD conversion, but for me is a perfect solution. ditched the flap, ditched the stock intake hole. the whole box is now filled with core, and ill use a bypass valve to regulate the temp.



pics to come

Edited by ed.oates, 12 May 2016 - 09:05 AM.

[Aerodynamic]

Pictures

[Doctor Ed]

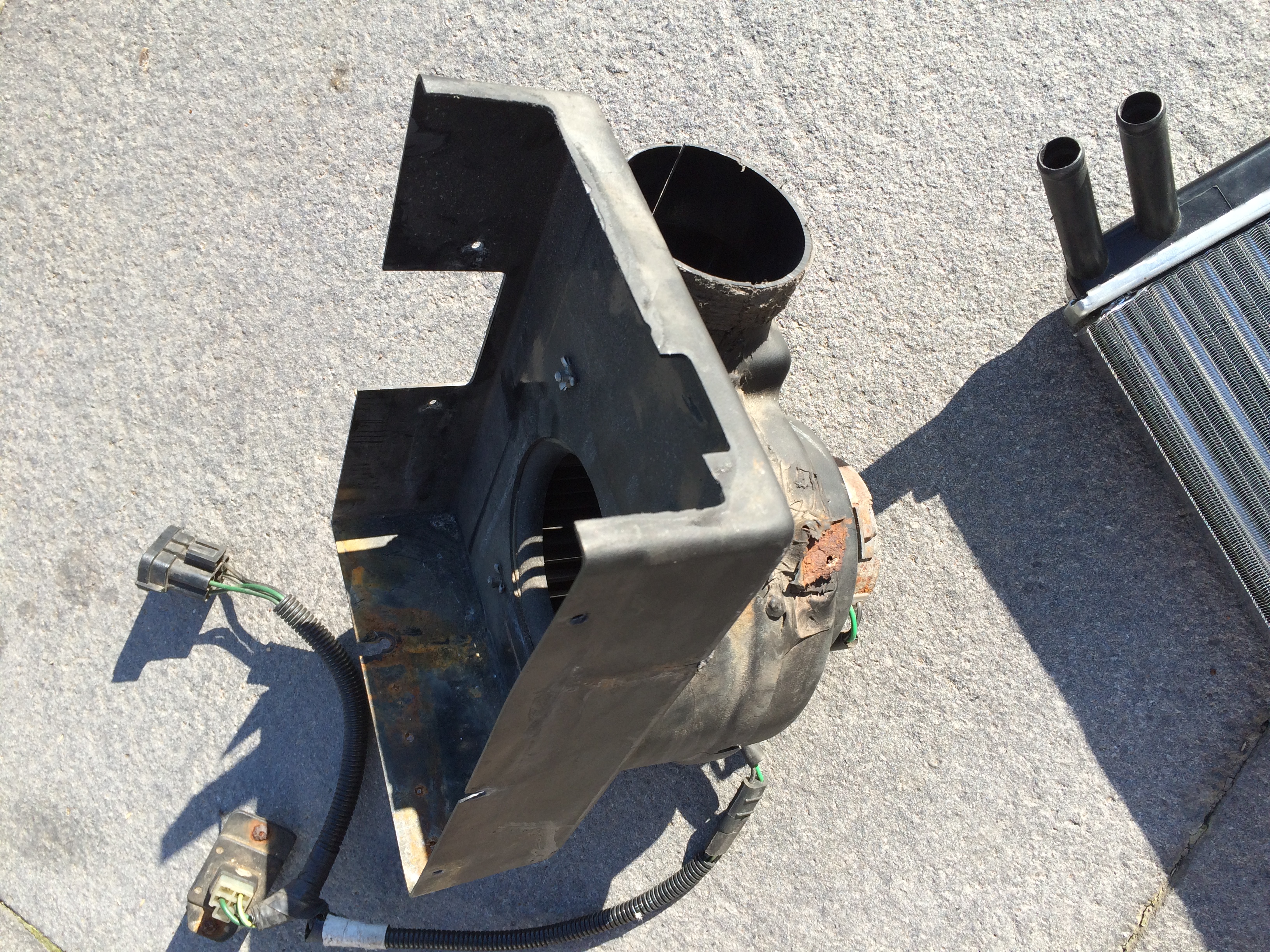

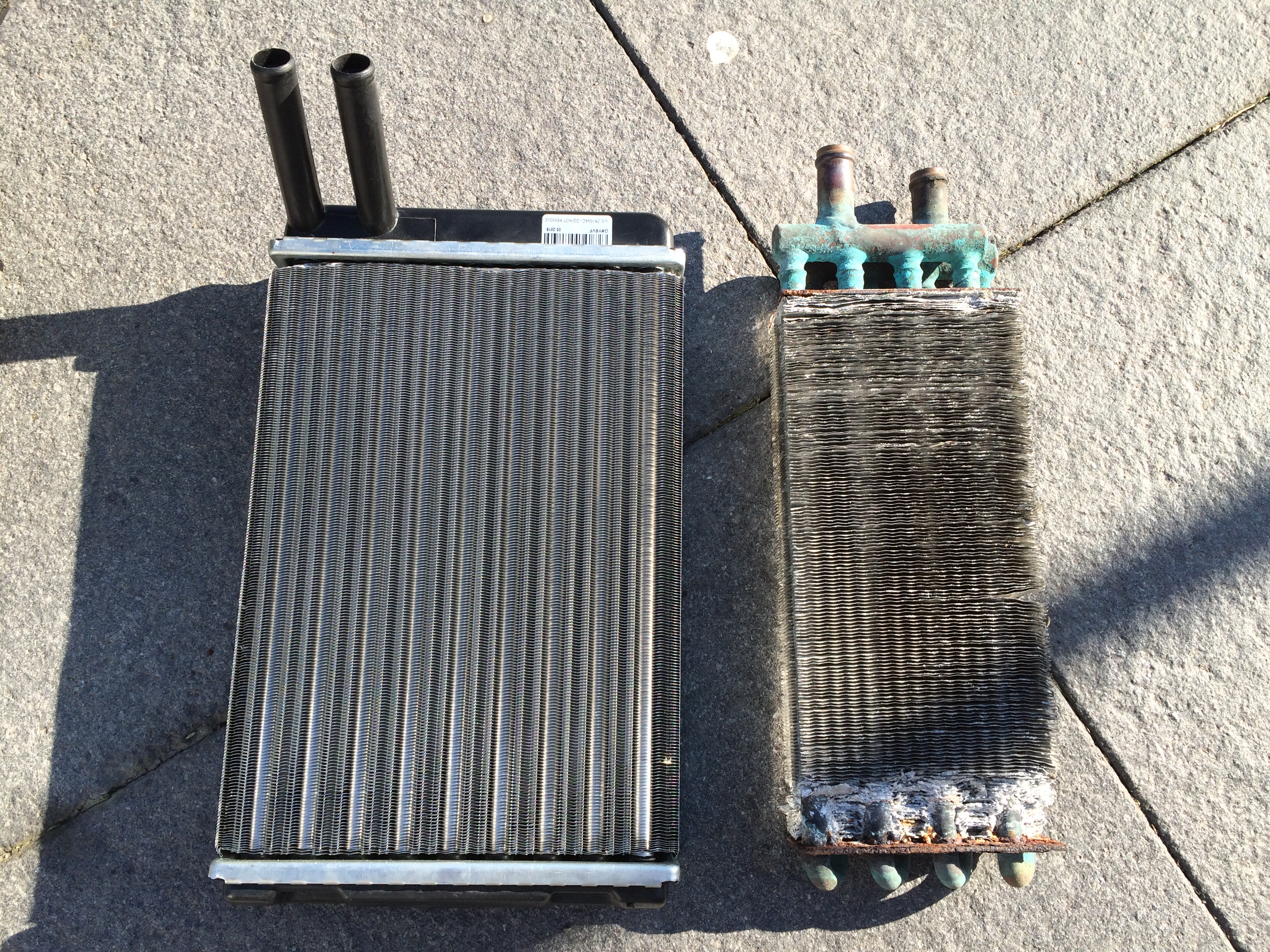

Volvo 940 core stuffed into the OEM heater box

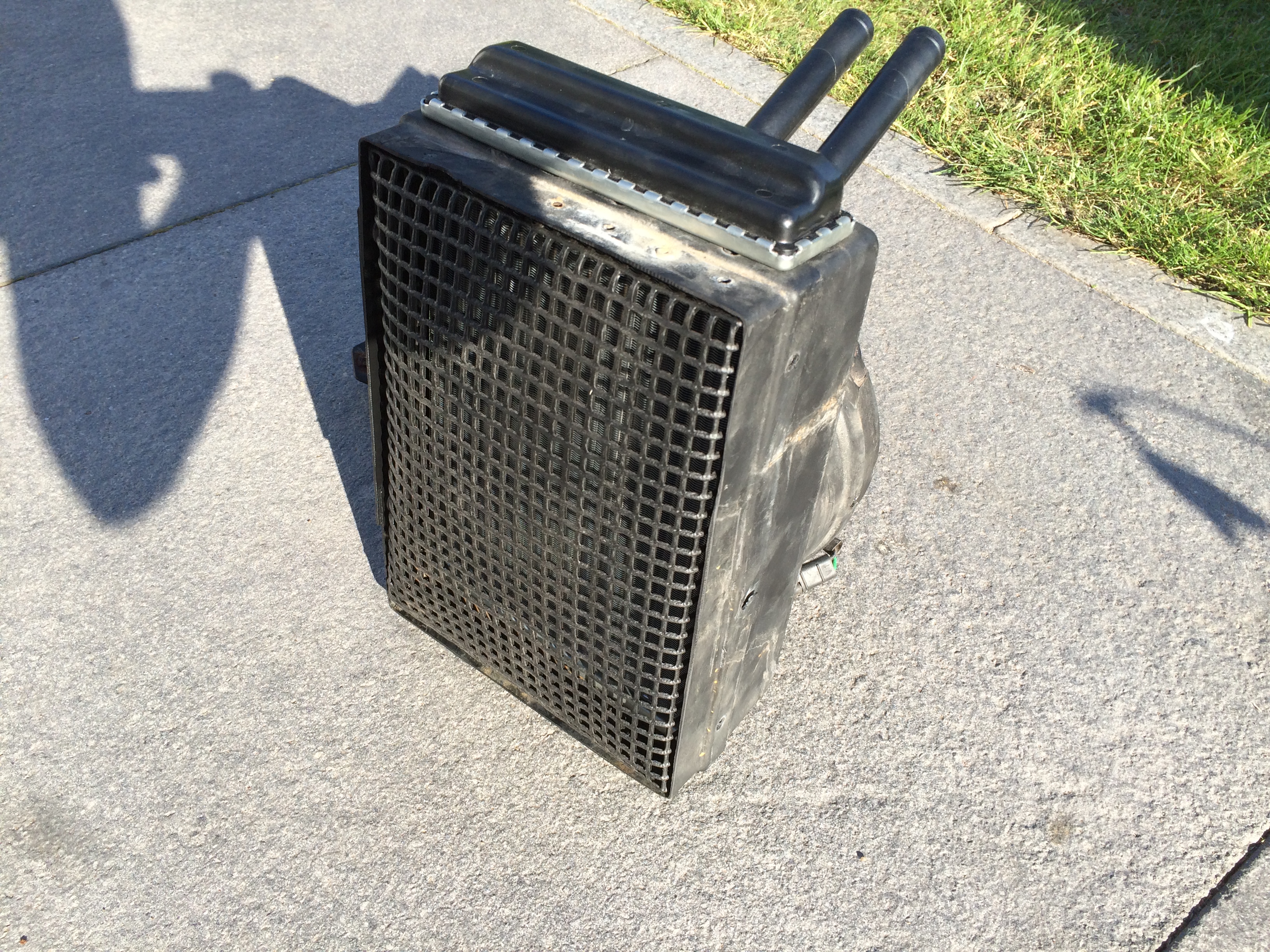

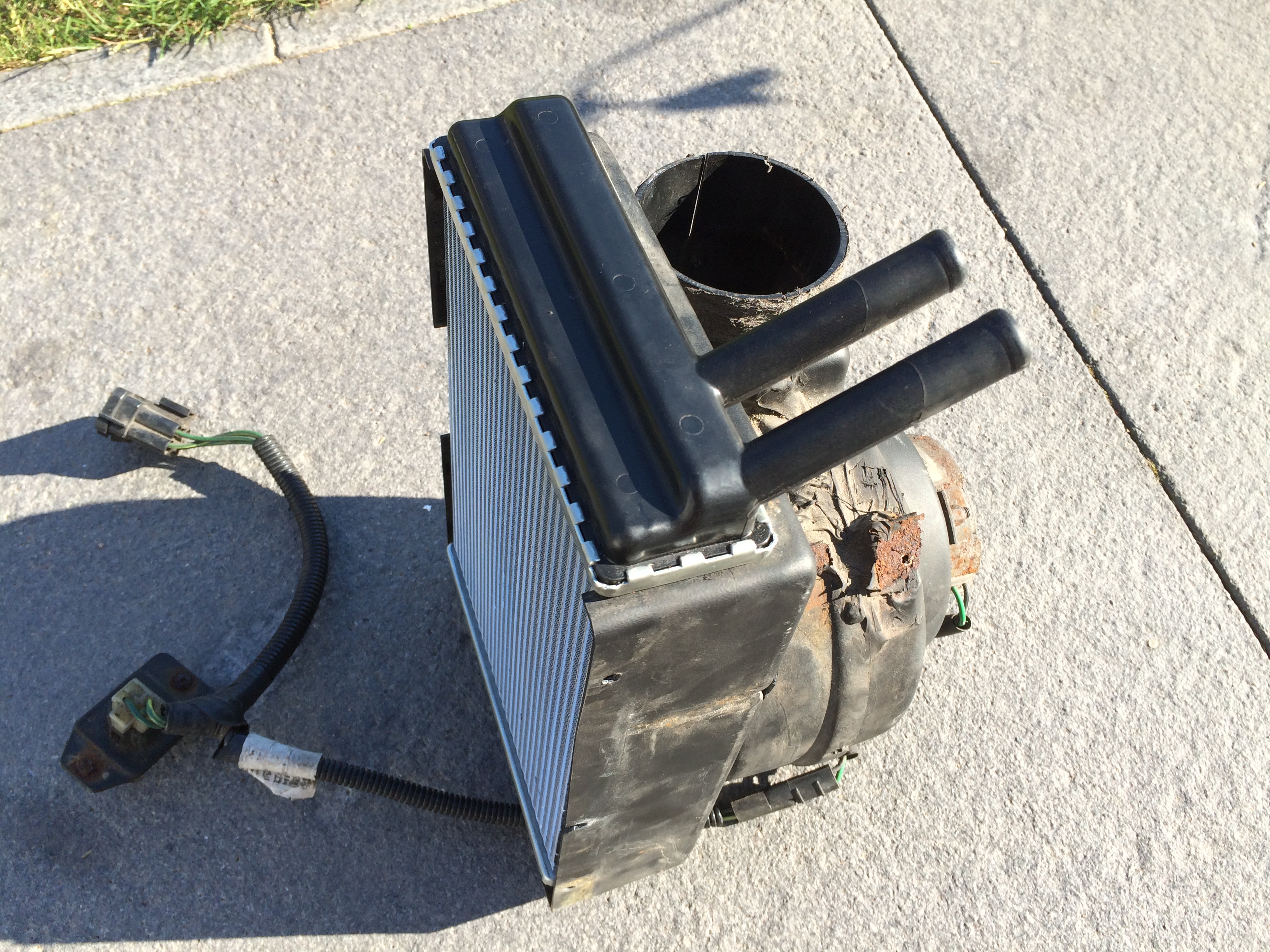

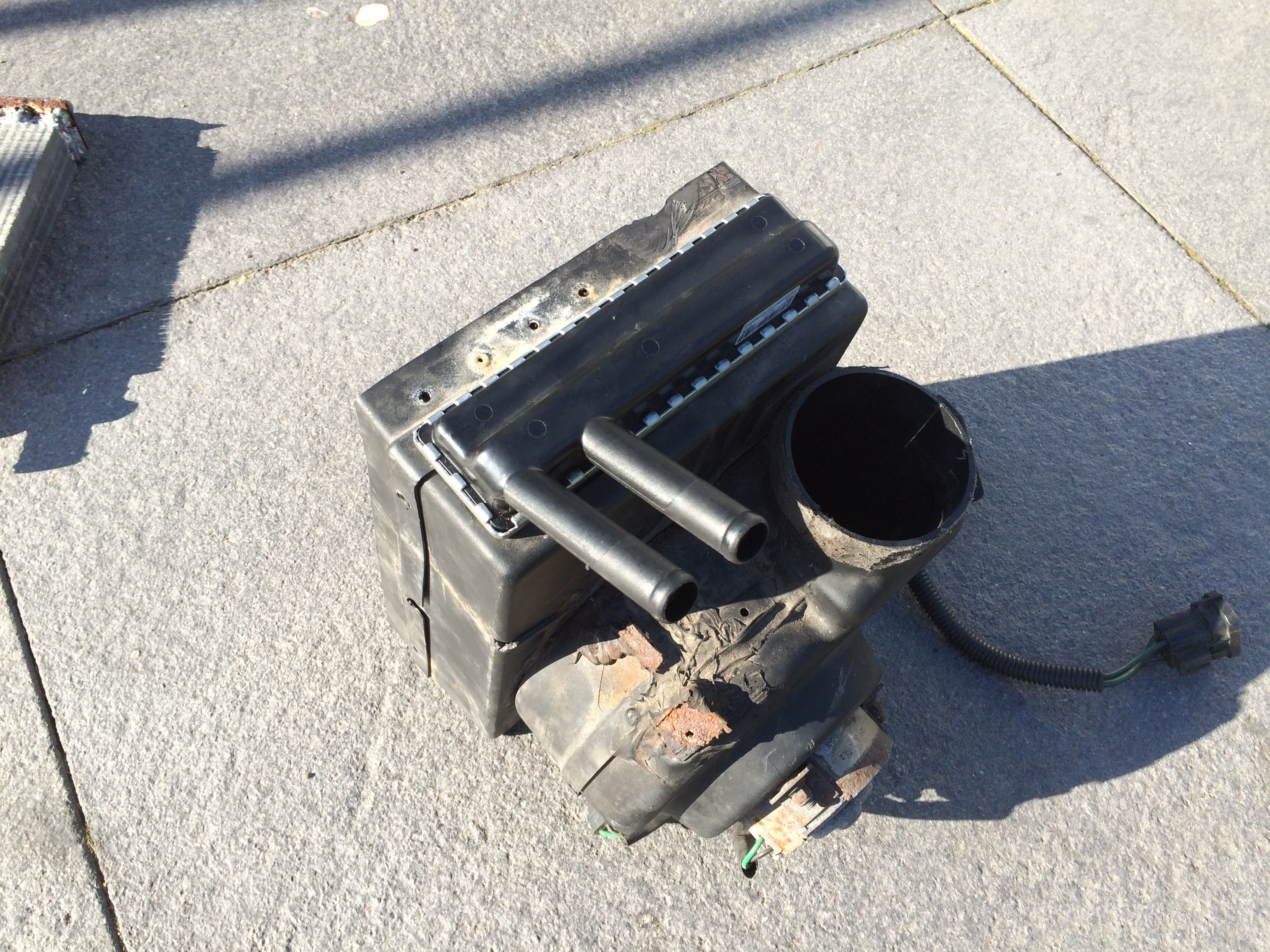

the core completely fills the box, and the top tank sits conveniently atop everything allowing good access to the hoses.
pics are rather self explanatory, but any q's just ask

[Gedi]

How are you going to switch between hot and cold now you've done away with the flap that bypassed the matrix?

I'm guessing that's what windows and a removable roof are for?



*edit - nevermind, I just noticed your post above the pics

Edited by Gedi, 13 May 2016 - 10:44 AM.

[SteveA]

Will it fit rotated 90 degrees horizontal? Looks close.

Edited by SteveA, 13 May 2016 - 12:34 PM.

[Doctor Ed]

Will it fit rotated 90 degrees horizontal? Looks close.

very close if you remove the 2cm piece with the grill, but even then its still about 5-10mm too big. plus half the core's intake would be blocked by the front bulkhead. the fully exposed side facing intake has a nice source of air from the front (hopefully not too dirty) and the alignment of the fan outlet/ducting inlet are pretty well lined up (when using a RHD heater box in LHD location anyway!) ive got a pic ill upload in a sec

[Gedi]

Will it fit rotated 90 degrees horizontal? Looks close.



Wouldn't that block the air feed from the crash box?

[SteveA]

Ed has fitted the intake to the side of the old heater box as the side of the new matrix blocks the standard input completely. So as he mentions above rotated 90 degrees the air will flow directly through the matrix and into the fan rather than the convoluted method the OEM one takes.

Edited by SteveA, 13 May 2016 - 02:38 PM.

[Doctor Ed]

[Doctor Ed]

Back on W2A setup, I had a bit of a ply with some 38mm tube... Yeah, nah. it's ungodly big. So, downsizing the main lines to 32mm, with silicone adapter couplings to 38mm allowing transition to the EWP115. Jury is still out on whether I'll run 19 or perhaps 22mm on the ends within the bay/hood. Need to get some tube and have a look

[Rosssco]

Did you get an engine loom and AFM with you engine Ed?

[Doctor Ed]

nope, no loom, maf, o2 sensors, temp sensor, starer nor alternator though... 2600 (£2050) for an otherwise complete factory crate motor... cant complain!

[BadCop]

The direct injection high pressure fuel pump and injectors loom is included (the main engine loom needs to be purchase seperately).



You can use the standard alternator and starter of Z22SE.



For the MAF you can use something like that:

http://www.regalauto..._J_VXR_OPC.html



Or use a completely different setup, but then you have to recalibrate MAF readings.

[Rosssco]

Yeah I've been balls-deep in man maths recently totalling everything up.. Obviously, installing one of these engines (selling my existing SC engine bundle), along with the added value to my car (ahem), enhanced reliability of a brand spank engine, and the fuel economy benefits of this smaller capacity more efficient engine... Completely justified my calculations 😄
