[Doctor Ed]

60-80mm 90deg silicone bend with MAF in rough position ready to go

[Doctor Ed]

And tonight's little 2hr time-waster... rad fan manual override switch

It's a ground triggered relay, with the relay itself up the front and the signal (ground) wire running the full length of the car via the cente console. Wire is blue with a grey stripe. Basically just need to manually ground the wire to override the sensor.

Google says people have a intercepted the wire in the center console area, but as that loom ascends to immediately behind the dash anyway, I just attacked the bundle as it appears through the grommet from the footwell area.

Stripped it, found it (deep in the middle of the bundle), spliced a separate ground wire into it. Wrapped it all back up with loom tape... "I was never here"...

As my switch panel are all illuminated toggles, I couldn't just run the signal wire via a simple switch to earth. Is therefore running via a NO relay to ground.

Relay on the left/top is the W2A intercooler fan controller. Relay on the right/bottom is the manual rad fan override controller.

[Doctor Ed]

Been fostering a small grin all afternoon after I got this wired up and working. Works an absolute treat

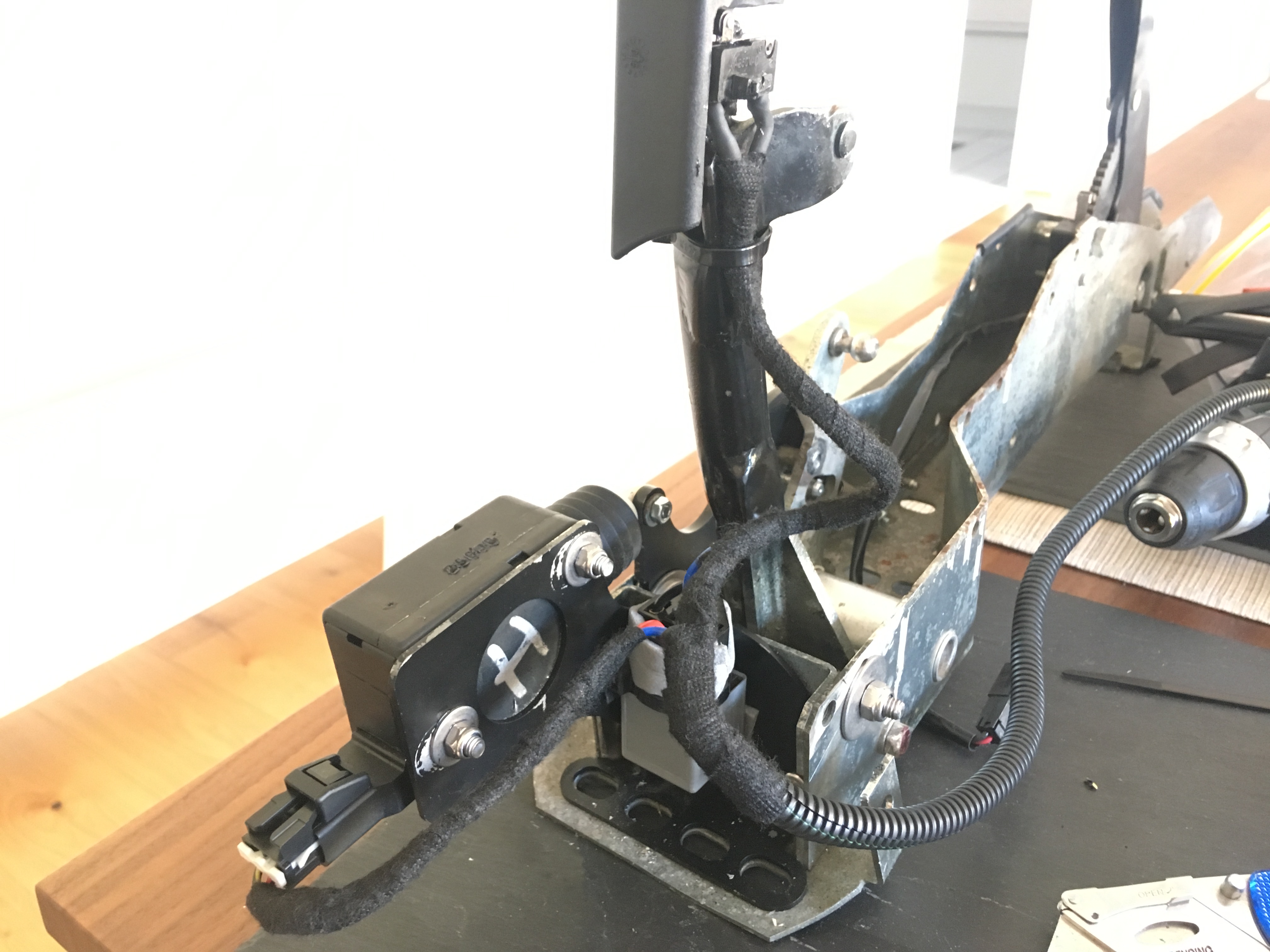

[Doctor Ed]

[Rosssco]

Can't recall from the rest of you thread, but are you fitting a large boot-mounted A2A intercooler and ducting?



Oh, and is that a turbo engine mount? Its not the standard NA part..

[ditonics]

love catching up on your works every few week, great job.

[Doctor Ed]

Mount is a Europa S mount for the M32 gearbox Running a 6" PWR W2A barrel cooler (this will sit on the panel on top of the fuel tank, new firewall enclosing it). The heat exchanger I'm going to try keeping in the back at first (right side turbo ear). Save on running pipes up to the front of the car. Everything's in place though to run a front mount heat exchanger if the one in the ear turns out not to work.

[Rosssco]

I meant the black mount on the engine - it looks like a steel version from a turbo engine, rather than the alloy one. So the M32 gearbox mounts mean you cannot use the original NA engine side mount? Just curious.

The orientation of the MAF has me thinking you were using the boot space - I presume its to be rotated 180 to run along the engine side.



60-80mm 90deg silicone bend with MAF in rough position ready to go

Edited by Rosssco, 29 August 2017 - 11:39 AM.

[Doctor Ed]

Ahh, that mount. Yeah that's also a Europa S mount. I could've used the alloy NA one as well, but it matches the other mount, and makes a nice set. It's a touch heavier, but hey... OCD symmetry wins over a few 100gr I am using the boot space but only for my airfilter/airborne, not the intercooler side of the circuit. The cat/dumppipe/exhaust also takes away the boot

[Aerodynamic]

Why dö you want a fån override switch?

[Aerodynamic]

Why Do you want a fan override switch?

[Doctor Ed]

electronic waterpump and manual fan control for when sitting in the pits after a session with the motor off

[The Batman]

i have davies craig electric water pump from my last engine.



if i pull or decide to pull the honda engine apart i will be fitting it to it  for that very reason, will fit a timer to it

[Doctor Ed]

Well this finally happened...

[Rosssco]

Nice.



Is that a large German beer, or wine?

[Doctor Ed]

https://www.stoertebeker.com

[Tony H]

Did you use a hardtop to align the screen.

[Doctor Ed]

nope, i used that spastic big wooden jig in the pics that i made. built that from the donor car whilst all still intact, and then adjusted it down to the mm to make sure everything is balanced and straight

Edited by Doctor Ed, 30 August 2017 - 08:35 PM.

[Doctor Ed]

[Nev]

Jeeze, so much effort and care going into this project, I'd be scared to drive it hard in case I "bumped" it.
